hyperproc, end to end on EMIT¶
A tutorial and a test at once. It walks the whole package on one EMIT granule, from opening a file to writing a corrected, quality-flagged, analysis-ready product.
Every function is introduced with a table of its parameters and what each one does, so you can change the behaviour rather than copy the call. Where a default was chosen for a reason, the reason is given.
The corrections, and the order they go in¶
| Stage | What it removes | Applies to |
|---|---|---|
| Atmospheric | the atmosphere between the surface and the sensor | any L1B radiance |
| BRDF | brightness that comes from the viewing and illumination angles | any reflectance |
| Topographic | brightness from the slope facing the sun | airborne only |
Atmospheric correction comes first. It turns radiance into surface reflectance, and the geometric corrections are defined on reflectance, so nothing else can run before it. BRDF normalisation then removes the effect of the viewing and illumination angles.
Topographic correction is not part of the satellite route. In this package it is restricted to airborne flightlines, where metre pixels make the terrain signal strong and a flightline group gives the angular spread needed to separate terrain from view angle. For EMIT, and every other satellite the package reads, the chain is atmospheric then BRDF. The airborne notebooks cover the topographic stage.
The three ways in, and what each produces¶
| You have | You run | You get |
|---|---|---|
| L1B radiance | step 3.1 | *_ac.tif |
| L1B radiance | step 3.2 | *_ac_brdf.tif in one call |
a saved *_ac.tif |
step 3.3 | *_ac_brdf.tif without redoing the retrieval |
| L2A reflectance | step 4 | *_brdf.tif |
Every one of those can be written as GeoTIFF or as ENVI; step 0 has the switch.
What you need¶
- the EMIT granule in
tests/data/EMIT: the radiance file, the reflectance file, and their observation and mask siblings, which the reader finds by itself; - for the atmospheric correction, ISOFIT.
pip install 'hyperproc[atmos]'thenhyperproc-atmos-setuponce, which fetches the radiative-transfer engines and the surface libraries (several GB); - for the BRDF correction, Earth Engine.
pip install 'hyperproc[brdf]'andearthengine authenticateonce.
Everything is computed from the granule and written into tests/output/EMIT. On the
whole scene the ISOFIT retrieval in step 3.1 takes 50 to 70 minutes on twenty cores
and each full-scene cube takes one to two minutes to write, so budget about an hour and a
half. Set WINDOW in step 0 to a few hundred pixels and the notebook runs in ten
minutes, which is the sensible way to try it the first time.
import os, sys, json, time, warnings
from pathlib import Path
REPO = Path.cwd()
while not (REPO / "hyperproc").is_dir() and REPO != REPO.parent:
REPO = REPO.parent
sys.path.insert(0, str(REPO))
import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
%matplotlib inline
import rasterio
import hyperproc as hp
warnings.filterwarnings("ignore", category=RuntimeWarning)
print("hyperproc", hp.__version__, "from", REPO)
Step 0 — the control panel¶
Everything worth changing is in one cell, so you can set it once and run the notebook straight through.
| Parameter | What it controls |
|---|---|
WINDOW |
None processes the whole granule; {"y": (600, 720), "x": (600, 720)} processes a subset, which is how to try the notebook quickly. It counts rows and columns on the detector grid, and step 1 works out the ground that covers so the L2A route follows the same patch |
WORKERS |
cores given to the ISOFIT retrieval |
EXPORT_FORMAT |
"GTiff" or "ENVI". Every product below follows it |
SZA_REF, VZA_REF |
the geometry the BRDF step normalises to. 45 degrees and nadir is the usual convention |
SPECTRAL_MAP |
how MODIS's seven correction factors reach 285 bands |
DIAG_NM |
the wavelength used for the maps and comparisons |
RUN_AC, RUN_BRDF, RUN_POST |
switch off a whole section if you only want part of the notebook |
OUT |
follows WINDOW: tests/output/EMIT for a whole scene, tests/output/EMIT_window for a subset, so the two runs never share an ISOFIT working directory |
HYPERPROC_CACHE_DIR is redirected into the output folder so the compiled surface priors
and any downloaded elevation tiles land with the products instead of in your home
directory.
# ---- what to run -----------------------------------------------------------------
RUN_AC = True
RUN_BRDF = True
RUN_POST = True
EXPORT_FORMAT = "GTiff" # or "ENVI"
# ---- processing parameters -------------------------------------------------------
WINDOW = {"y": (600, 720), "x": (600, 720)} # a 120 x 120 subset, for a quick pass
WORKERS = 20
SZA_REF = 45.0 # or "observed" to keep each pixel's own sun angle
VZA_REF = 0.0
SPECTRAL_MAP = "nearest" # or "interp"
DIAG_NM = 865.0
# ---- where things go -------------------------------------------------------------
# the folder follows WINDOW, so a subset run and a whole-scene run never share an
# ISOFIT working directory and cannot reuse each other's retrieval by accident
DATA = REPO / "tests" / "data" / "EMIT"
OUT = REPO / "tests" / "output" / ("EMIT" if WINDOW is None else "EMIT_window")
OUT.mkdir(parents=True, exist_ok=True)
WORK_DIR = OUT / "02_ac" / "isofit" # ISOFIT's working directory
MODIS_DIR = OUT / "03_ac_brdf" / "mcd43" # MODIS BRDF parameters land here
os.environ["HYPERPROC_CACHE_DIR"] = str(OUT / "cache") # surface priors, elevation tiles
EXT = hp.FORMATS[EXPORT_FORMAT]
print(f"output {OUT}")
print(f"format {EXPORT_FORMAT} ({EXT})")
print(f"window {WINDOW or 'whole scene'}")
Saved output
Two helpers, because a row number is not a place¶
WINDOW above is worth one warning, and it applies to every raster comparison you will
ever write. When WINDOW is set, a product covers a small patch somewhere inside the
scene, not the scene's top-left corner. Comparing product[:h, :w] with scene[:h, :w]
then puts two completely different pieces of ground side by side, and on EMIT the scene
corner falls outside the swath, so the second image comes out empty.
Line up by coordinate, never by array index. These two helpers do that, and every comparison below goes through them.
| Helper | What it does |
|---|---|
raster_grid(path) |
the pixel-centre longitudes and latitudes of a raster on disk, read from its affine transform |
same_ground(ds, x, y) |
the part of a dataset covering those coordinates. method="nearest" with a one-pixel tolerance means a grid that does not really overlap raises, instead of quietly handing back the wrong pixels |
They work unchanged when WINDOW is None: the product then covers the whole scene and
the selection is the identity.
def raster_grid(path):
'''Pixel-centre coordinates (x, y) of a raster on disk.'''
with rasterio.open(path) as src:
tr = src.transform
return (tr.c + (np.arange(src.width) + 0.5) * tr.a,
tr.f + (np.arange(src.height) + 0.5) * tr.e)
def same_ground(ds, x, y):
'''The part of `ds` covering those coordinates, to within one pixel.'''
tol = abs(float(ds.x[1] - ds.x[0]))
return ds.sel(x=x, y=y, method="nearest", tolerance=tol)
Step 1 — reading¶
hp.open(path, sensor=None, level=None, **kwargs)¶
The only entry point you need. It works out the sensor and level from the filename, finds
the sibling files, and returns an xarray.Dataset with the same shape of metadata
whatever the instrument: reflectance or radiance on (y, x, wavelength), the
wavelength and FWHM as coordinates, and the geometry and masks as 2-D layers.
| Parameter | Default | What it does |
|---|---|---|
path |
— | the main file. EMIT splits a granule across three files; pass the radiance or reflectance one and the observation and mask siblings are found automatically |
sensor, level |
guessed | override when the filename has been changed and cannot be recognised |
EMIT's reader takes five more, passed through as keyword arguments:
| Parameter | Default | What it does |
|---|---|---|
ortho |
True |
True puts the cube on the map grid through the granule's geographic look-up table. False keeps the raw 1280 x 1242 detector grid, which is where the retrieval runs |
wl_range |
None |
(400, 1000) loads only that part of the spectrum, which saves time and memory when you only need the visible |
good_bands_only |
False |
drop the bands the product flags unusable rather than keeping them as NaN. Leave it False so the band numbering matches the provider's |
masks |
True |
attach the cloud, cirrus, water and dilated-cloud layers from the mask sibling |
geometry |
True |
attach the sun and view angles, slope, aspect and path length from the observation sibling. Set it False only if you never intend to correct anything, since both corrections need the angles |
Nothing is read from disk here. The cube is lazy, so opening a 2 GB granule is instant and only the parts you touch are loaded.
Four helpers for looking before you leap¶
| Call | What it gives you |
|---|---|
hp.sniff(path) |
reads the filename and, if needed, the file's own metadata, and returns the sensor, level, granule name, acquisition time and CRS without opening the cube. Use it to sort a directory of mixed granules |
hp.summary() |
one line per reader: the sensors the installed version can read |
hp.list_readers() |
the full table, including which levels each reader handles and which sibling files it expects to find |
hp.describe(ds, var=None) |
the band table, value ranges and layers of an opened dataset. var selects the cube when it is not called reflectance |
hp.main_var(ds) |
the name of the cube in a dataset, "reflectance" or "radiance", so your own code does not have to guess |
None of them read pixels, so all are instant on a granule of any size.
print(hp.summary()) # one line per reader
hp.list_readers() # the full table: which sensors and levels, and what each expects
Saved output
Implemented: AVIRIS L1B, AVIRIS L2A, AVIRIS-CLASSIC L1B, AVIRIS-CLASSIC L2A, AVIRIS-NG L1B, AVIRIS-NG L2A, AVIRIS3 L1B, AVIRIS3 L2A, AVIRIS5 L1B, AVIRIS5 L2A, DESIS L1B, DESIS L1C, DESIS L2A, EMIT L1B, EMIT L2A, ENMAP L1B, ENMAP L1C, ENMAP L2A, NEON L1, PACE L1B, PACE L2, PRISMA L1, PRISMA L2B, PRISMA L2C, PRISMA L2D, TANAGER L1B, TANAGER L2A. Planned: NEON.
sensor level status expects
----------------------------------------------------------------------------
AVIRIS L1B ready the radiance cube, its .hdr, or the folder holding it - *_RDN_ORT (AVIRIS-3), *_rdn_*_img (NG), *_sc01_ort_img (Classic)
AVIRIS L2A ready the reflectance cube, its .hdr, or the folder holding it - *_RFL_ORT (AVIRIS-3), *_RFL_ORT.nc (-5), *_rfl_*_img (NG), *_corr_*_img (Classic)
AVIRIS-CLASSIC L1B ready AVIRIS-CLASSIC L1B cube, .hdr, or folder
AVIRIS-CLASSIC L2A ready AVIRIS-CLASSIC L2A cube, .hdr, or folder
AVIRIS-NG L1B ready AVIRIS-NG L1B cube, .hdr, or folder
AVIRIS-NG L2A ready AVIRIS-NG L2A cube, .hdr, or folder
AVIRIS3 L1B ready AVIRIS3 L1B cube, .hdr, or folder
AVIRIS3 L2A ready AVIRIS3 L2A cube, .hdr, or folder
AVIRIS5 L1B ready AVIRIS5 L1B cube, .hdr, or folder
AVIRIS5 L2A ready AVIRIS5 L2A cube, .hdr, or folder
DESIS L1B ready DESIS-HSI-L1B-*-SPECTRAL_IMAGE.tif
DESIS L1C ready DESIS-HSI-L1C-*-SPECTRAL_IMAGE.tif
DESIS L2A ready DESIS-HSI-L2A-*-SPECTRAL_IMAGE.tif
EMIT L1B ready EMIT_L1B_RAD_*.nc (OBS and MASK siblings are picked up automatically)
EMIT L2A ready EMIT_L2A_RFL_*.nc (MASK and OBS siblings are picked up automatically)
ENMAP L1B ready ENMAP01-____L1B-*-SPECTRAL_IMAGE[_VNIR|_SWIR].TIF
ENMAP L1C ready ENMAP01-____L1C-*-SPECTRAL_IMAGE[_VNIR|_SWIR].TIF
ENMAP L2A ready ENMAP01-____L2A-*-SPECTRAL_IMAGE[_VNIR|_SWIR].TIF
NEON L1 ready NEON_D??_SITE_DP1_YYYYMMDD_HHMMSS_reflectance.h5 (one flightline)
NEON L3 not written NEON_D*_SITE_DP3_*_reflectance.h5 (1 km mosaic tiles)
PACE L1B ready PACE_OCI.*.L1B.*.nc
PACE L2 ready PACE_OCI.*.L2.*.nc
PRISMA L1 ready PRS_L1_STD_*.he5
PRISMA L2B ready PRS_L2B_STD_*.he5
PRISMA L2C ready PRS_L2C_STD_*.he5
PRISMA L2D ready PRS_L2D_STD_*.he5
TANAGER L1B ready *_ortho_radiance_hdf5.h5
TANAGER L2A ready *_ortho_sr_hdf5.h5
l1b_path = sorted(DATA.glob("EMIT_L1B_RAD_*.nc"))[0]
l2a_path = sorted(DATA.glob("EMIT_L2A_RFL_*.nc"))[0]
# hp.sniff tells you what a file is without opening it
print("sniffed:", hp.sniff(l1b_path), hp.sniff(l2a_path))
l1b = hp.open(l1b_path) # at-sensor radiance, ortho grid
l2a = hp.open(l2a_path) # JPL's surface reflectance
l1b_sensor = hp.open(l1b_path, ortho=False) # the detector grid, for comparison
# The L2A scenarios (steps 4 to 6) work on this. It is the whole granule when WINDOW is
# None, so a quick pass stays quick. WINDOW counts rows and columns on the *detector*
# grid, which is a different grid from the map one, so the same numbers applied to the
# ortho cube would land somewhere else entirely - on this granule, out at sea. Take the
# ground the detector window actually covers and select that instead.
if WINDOW is None:
l2a_sub = l2a
else:
_w = l1b_sensor.isel(y=slice(*WINDOW["y"]), x=slice(*WINDOW["x"]))
l2a_sub = l2a.sel(x=slice(float(_w.lon.min()), float(_w.lon.max())),
y=slice(float(_w.lat.max()), float(_w.lat.min()))) # y runs north to south
for name, ds in (("L1B (ortho)", l1b), ("L1B (sensor grid)", l1b_sensor), ("L2A", l2a),
("L2A (the piece steps 4-6 use)", l2a_sub)):
print(f"\n{name}: {dict(ds.sizes)} var={hp.main_var(ds)} units={ds.attrs.get('units')}")
print(f" crs={ds.attrs.get('crs') or 'none (detector grid)'}")
Saved output
L1B (ortho): {'wavelength': 285, 'y': 2023, 'x': 2203} var=radiance units=uW/cm^2/SR/nm
crs=EPSG:4326
L1B (sensor grid): {'wavelength': 285, 'y': 1280, 'x': 1242} var=radiance units=uW/cm^2/SR/nm
crs=none (detector grid)
L2A: {'wavelength': 285, 'y': 2023, 'x': 2203} var=reflectance units=1
crs=EPSG:4326
L2A (the piece steps 4-6 use): {'wavelength': 285, 'y': 191, 'x': 208} var=reflectance units=1
crs=EPSG:4326
Saved output
sensor EMIT L2A
granule EMIT_L2A_RFL_001_20230422T195924_2311213_002
acquired 2023-04-22T19:59:24+0000
grid 2023 x 2203 (ortho)
pixel 60 m
extent x -120.9957 .. -119.8011 y 33.9841 .. 35.0810
bands 285 381.0 - 2492.9 nm (fwhm 8.6 nm)
flagged 41 bands flagged unusable (provider)
valid px ~91.8% of 4,456,669 (from a 6,561-px sample)
reflectan median 0.1347 p1 -0.0100 p99 0.4845
masks cloud=2.7% cirrus=0.0% water=6.0% spacecraft=0.0% dilated_cloud=8.2%
geometry sza=22.2deg saa=179.6deg vza=11.3deg vaa=132.3deg raa=312.7deg
terrain slope=0.00 aspect=270.00 cos_i=0.93
The geometry, and why it matters later¶
Both corrections are functions of angle, so the reader attaches them per pixel: sza and
saa for the sun, vza and vaa for the sensor, raa for the angle between them, plus
slope, aspect and cos_i from the terrain and elev from the elevation model.
Read the spread below, not just the range. EMIT's swath is 75 km, so within one granule the view zenith varies by under two degrees. That is why its BRDF correction is mostly a change of level to the target geometry rather than the removal of an across-track gradient, and why the validation at the end of step 4 cannot say much.
for v in ("sza", "saa", "vza", "vaa", "raa", "slope", "cos_i", "elev"):
if v in l2a:
a = l2a[v].values
print(f" {v:6s} {np.nanmin(a):8.2f} .. {np.nanmax(a):8.2f} spread {np.nanmax(a)-np.nanmin(a):7.2f}")

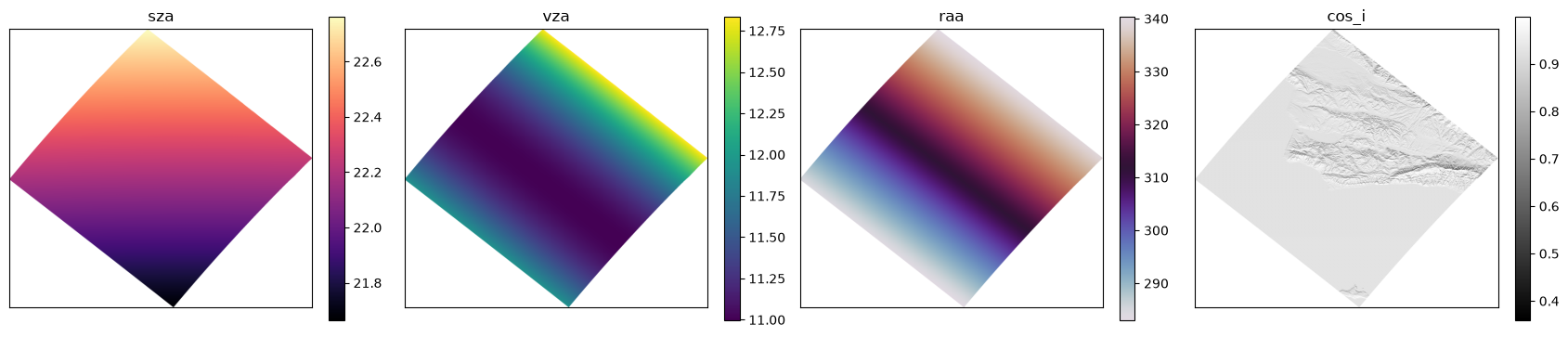

fig, ax = plt.subplots(1, 4, figsize=(17, 3.6))
for a, v, cm in zip(ax, ("sza", "vza", "raa", "cos_i"), ("magma", "viridis", "twilight", "gray")):
im = a.imshow(l2a[v].values, cmap=cm); a.set_title(v); a.set_xticks([]); a.set_yticks([])
plt.colorbar(im, ax=a, fraction=0.046)
plt.tight_layout(); plt.show()
Saved output
Saved output
Step 2 — writing, in either format¶
hp.to_geotiff(ds, path, var=None, compress="deflate", overviews=None, overview_resampling="average")¶
| Parameter | Default | What it does |
|---|---|---|
path |
— | a .tif, or a directory, in which case the file is named after the granule |
var |
the cube | which variable to write |
compress |
"deflate" |
lossless, roughly halves the file. None writes uncompressed |
overviews |
None |
True builds internal pyramids so a GIS can draw the scene without reading it at full resolution; a list like [2, 4, 8] sets the factors |
overview_resampling |
"average" |
right for reflectance. Use "nearest" or "mode" for a classification or a flag layer, where averaging would invent values |
hp.to_envi(ds, path, var=None, interleave="bil")¶
| Parameter | Default | What it does |
|---|---|---|
path |
— | an .img, or a directory. The header is written beside it as <stem>.hdr |
var |
the cube | which variable to write |
interleave |
"bil" |
"bil", "bip" or "bsq". BIL is the hyperspectral norm and matches how the readers stream |
Why you would choose ENVI. A GeoTIFF can only label a band with free text, so
650.4 nm is something a person reads. An ENVI header states wavelength, fwhm and
bbl as fields that come back as numbers, so the band centres, the widths and the
bad-band list survive the export. A GeoTIFF cannot carry a bad-band list at all. The
costs are no compression, about twice the disk, and no internal pyramids.
hp.to_raster(ds, path, format="GTiff", **kwargs)¶
Picks between the two and passes the rest through. This notebook uses it everywhere so
that EXPORT_FORMAT controls the whole run.
_cy, _cx = l2a_sub.sizes["y"] // 2, l2a_sub.sizes["x"] // 2 # centre of the piece in use
demo = l2a_sub.isel(y=slice(_cy - 30, _cy + 30), x=slice(_cx - 30, _cx + 30))
t0 = time.time()
tif = hp.to_geotiff(demo, OUT / "01_read" / "demo.tif", overviews=True)
img = hp.to_envi(demo, OUT / "01_read" / "demo.img", interleave="bil")
print(f"GeoTIFF {tif.stat().st_size/1e6:6.2f} MB ENVI {img.stat().st_size/1e6:6.2f} MB"
f" ({time.time()-t0:.1f} s)")
print("\nwhat the ENVI header carries that a GeoTIFF cannot:")
for line in img.with_suffix(".hdr").read_text().splitlines():
if line.split("=")[0].strip() in ("wavelength units", "interleave", "data ignore value", "sensor"):
print(" ", line)
for key in ("wavelength =", "fwhm =", "bbl ="):
if line.startswith(key):
print(f" {key:14s} {line.split('=',1)[1].strip()[:56]} ...")
Saved output
GeoTIFF 2.36 MB ENVI 4.10 MB (6.1 s)
what the ENVI header carries that a GeoTIFF cannot:
interleave = bil
data ignore value = nan
bbl = {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1 ...
fwhm = {8.414999962, 8.414999962, 8.414999962, 8.414999962, 8.4 ...
sensor = EMIT
wavelength = {381.0055847, 388.4092102, 395.8158264, 403.2254028, 410 ...
wavelength units = Nanometers
hp.to_geotiff_2d(ds, path, var, overviews=None, overview_resampling="average", tags=None, format="GTiff")¶
For a single 2-D layer: an elevation model, a retrieved aerosol map, a flag band.
| Parameter | Default | What it does |
|---|---|---|
var |
— | required, the layer to write |
tags |
None |
a dict of metadata written into the file, which is how a flag layer carries its own bit meanings |
format |
"GTiff" |
as above. ENVI ignores overviews with a warning, since it has no internal pyramids |
hp.export_geometry(ds, path, layers=None, overviews=None, overview_resampling="average")¶
Writes the angle and terrain layers a correction consumes, one file each. Worth doing whenever you write a corrected product, because the product itself does not carry the angles and step 3.3 needs them.
| Parameter | Default | What it does |
|---|---|---|
layers |
all ten | ("sza", "vza", "raa") to write only what the BRDF step needs |
hp.bands_to_csv(ds, path)¶
The band table as a CSV: wavelength, FWHM and the usable flag, one row per band.
hp.bands_to_csv(demo, OUT / "01_read" / "demo_bands.csv")
hp.to_geotiff_2d(demo, OUT / "01_read" / f"demo_elev{EXT}", var="elev", format=EXPORT_FORMAT)
written = hp.export_geometry(demo, OUT / "01_read" / "geometry", layers=("sza", "vza", "raa"))
print("geometry layers written:", [p.name for p in written])
print("\nfolder now holds:", sorted(p.name for p in (OUT / "01_read").iterdir())[:8], "...")
Saved output
geometry layers written: ['EMIT_L2A_RFL_001_20230422T195924_2311213_002_sza.tif', 'EMIT_L2A_RFL_001_20230422T195924_2311213_002_vza.tif', 'EMIT_L2A_RFL_001_20230422T195924_2311213_002_raa.tif']
folder now holds: ['demo.hdr', 'demo.img', 'demo.img.aux.xml', 'demo.tif', 'demo_bands.csv', 'demo_elev.tif', 'geometry'] ...
Step 3 — scenario A, starting from L1B radiance¶
3.1 Atmospheric correction¶
hp.atmos.process(source, out_dir, ...)¶
One call from a radiance granule to a finished product: the reflectance cube, the retrieved aerosol and water-vapour layers, the quality flags, a band CSV and a provenance JSON.
| Parameter | Default | What it does |
|---|---|---|
source |
— | the L1B file, or an already-opened dataset |
out_dir |
— | where the products go |
work_dir |
out_dir/isofit_work/<stem> |
where ISOFIT works. A finished run here is reused, which is how you resume an interrupted retrieval; delete the folder to force a redo |
stages |
("ac",) |
("ac", "brdf") chains the BRDF normalisation and names the product _ac_brdf |
engine |
"sRTMnet" |
the radiative-transfer engine. "6S" and "LibRadTran" also work; sRTMnet is the emulator JPL uses and is much the fastest |
workers |
24 |
cores for the retrieval |
window |
None |
{"y": (a, b), "x": (c, d)} corrects a subset. The product then covers only that footprint |
layers |
("aot550", "h2o") |
which retrieved 2-D layers to write beside the cube |
uncertainty |
False |
also write the posterior reflectance uncertainty cube, which doubles the output size |
quality |
True |
write the consolidated flag layer beside the product |
format |
"GTiff" |
"GTiff" or "ENVI" |
overviews |
True |
internal pyramids on every GeoTIFF written |
like |
None |
for swath sensors, a projected dataset whose grid the product should reproduce |
overwrite |
False |
redo the retrieval even if the work directory holds one |
Anything else is passed to the retrieval itself: atmosphere, surface,
segmentation_size, num_neighbors, aot_prior_sigma.
The retrieval runs on the sensor grid, where the per-pixel geometry lives, and the result is put on the map grid afterwards through the granule's own geographic look-up table. That is the route JPL uses, which is why the output can be compared with their L2A cell for cell two cells below.
This is the slow step. On the whole granule it is 50 to 70 minutes: a water-vapour presolve, then the full look-up table and the superpixel inversions, then the analytical line that carries the retrieved state to every pixel. The cell before it checks the ISOFIT assets, so a missing engine fails in seconds rather than at minute forty.
if RUN_AC:
from hyperproc.atmos import check
report = check(engines=("sRTMnet",))
print("\nISOFIT assets ready:", report["ok"])
if not report["ok"]:
print("run `hyperproc-atmos-setup` first; the lines above say what is missing")
Saved output
Saved output
hyperproc.atmos check (python 3.12.11, isofit 4.1.5)
ini /home/fujiang/.isofit/isofit.ini
gfortran /usr/bin/gfortran
make /usr/bin/make
data ok /data/fujiang/isofit_assets/data
sixs ok /data/fujiang/isofit_assets/sixs exe /data/fujiang/isofit_assets/sixs/sixsV2.1
srtmnet ok /data/fujiang/isofit_assets/srtmnet
surface ok /data/fujiang/isofit_assets/surface
everything needed is in place
ISOFIT assets ready: True
if RUN_AC:
from hyperproc.atmos import process
t0 = time.time()
ac = process(l1b_path, OUT / "02_ac", work_dir=WORK_DIR, stages=("ac",),
workers=WORKERS, window=WINDOW, format=EXPORT_FORMAT,
layers=("aot550", "h2o"), overviews=True, verbose=True)
print(f"\n{(time.time()-t0)/60:.1f} min -> {Path(ac['reflectance']).name}")
print("layers :", {k: Path(v).name for k, v in ac["layers"].items()})
print("quality:", Path(ac["quality"]).name)
else:
ac = None; print("RUN_AC is False; skipped")
Saved output
process: EMIT_L1B_RAD_001_20230422T195924_2311213_002 stages ('ac',) engine sRTMnet work /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/02_ac/isofit
prepare_inputs: EMIT -> apply_oe sensor emit, fid emit20230422t195924; 120 x 120 x 285
radiance file already present with the right size; kept
ISOFIT inputs for EMIT_L1B_RAD_001_20230422T195924_2311213_002 (sensor code emit, fid emit20230422t195924)
120 lines x 120 samples x 285 bands, radiance x1 -> uW/cm2/nm/sr
rdn /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/02_ac/isofit/input/emit20230422t195924_rdn
loc /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/02_ac/isofit/input/emit20230422t195924_loc
obs /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/02_ac/isofit/input/emit20230422t195924_obs
valid pixels 100.0%; lat 34.548 lon -120.380 elev 56..418 m
sza 22.2..22.3 vza 11.0..11.2 raa 42..48 deg utc 19.992 h
reflectance product already present: /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/02_ac/isofit/output/emit20230422t195924_rfl (overwrite=True to redo)
Saved output
/home/fujiang/miniconda3/envs/hsi/lib/python3.12/site-packages/rioxarray/_io.py:1148: NotGeoreferencedWarning: Dataset has no geotransform, gcps, or rpcs. The identity matrix will be returned.
warnings.warn(str(rio_warning.message), type(rio_warning.message)) # type: ignore
/home/fujiang/miniconda3/envs/hsi/lib/python3.12/site-packages/rioxarray/_io.py:1148: NotGeoreferencedWarning: Dataset has no geotransform, gcps, or rpcs. The identity matrix will be returned.
warnings.warn(str(rio_warning.message), type(rio_warning.message)) # type: ignore
/home/fujiang/miniconda3/envs/hsi/lib/python3.12/site-packages/rioxarray/_io.py:1148: NotGeoreferencedWarning: Dataset has no geotransform, gcps, or rpcs. The identity matrix will be returned.
warnings.warn(str(rio_warning.message), type(rio_warning.message)) # type: ignore
/home/fujiang/miniconda3/envs/hsi/lib/python3.12/site-packages/rioxarray/_io.py:1148: NotGeoreferencedWarning: Dataset has no geotransform, gcps, or rpcs. The identity matrix will be returned.
warnings.warn(str(rio_warning.message), type(rio_warning.message)) # type: ignore
Saved output
Saved output
quality: fill 49.3%, clear 50.7%
done in 0.0 min -> /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/02_ac/EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_win600-720_600-720.tif
0.0 min -> EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_win600-720_600-720.tif
layers : {'aot550': 'EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_win600-720_600-720_aot550.tif', 'h2o': 'EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_win600-720_600-720_h2o.tif'}
quality: EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_win600-720_600-720_quality.tif
if RUN_AC:
prov = json.loads(Path(ac["provenance"]).read_text())
print("the provenance JSON records what was done:")
for k in ("stages", "format", "sensor", "datetime"):
print(f" {k:10s} {prov[k]}")
print(f" {'grid':10s} {prov['grid']['shape']} {prov['grid']['crs']}")
print(f" {'isofit':10s} v{prov['isofit']['version']}, {prov['isofit']['seconds']} s")
print(f" {'quality':10s} " + ", ".join(f"{k} {v*100:.1f}%" for k, v in prov["quality"]["shares"].items()))
Saved output
if RUN_AC:
with rasterio.open(ac["reflectance"]) as src:
wl_ours = np.array([float(d.split()[0]) for d in src.descriptions])
b = int(np.argmin(np.abs(wl_ours - DIAG_NM)))
ours = src.read(b + 1)
# line the two up by coordinate; with WINDOW set they are different-sized grids
xs, ys = raster_grid(ac["reflectance"])
theirs = same_ground(l2a.reflectance.isel(
wavelength=int(np.argmin(np.abs(l2a.wavelength.values - DIAG_NM)))), xs, ys).values
a_, b_ = ours, theirs
ok = np.isfinite(a_) & np.isfinite(b_) & (a_ > 0) & (b_ > 0)
print(f"our retrieval against JPL's L2A at {DIAG_NM:.0f} nm, {ok.sum():,} pixels:")
print(f" median difference {np.median(a_[ok]-b_[ok]):+.4f} RMSE {np.sqrt(np.mean((a_[ok]-b_[ok])**2)):.4f}"
f" r {np.corrcoef(a_[ok], b_[ok])[0,1]:.4f}")
lim = float(np.nanpercentile(np.abs(a_ - b_), 98)) or 0.02 # let the data set the scale

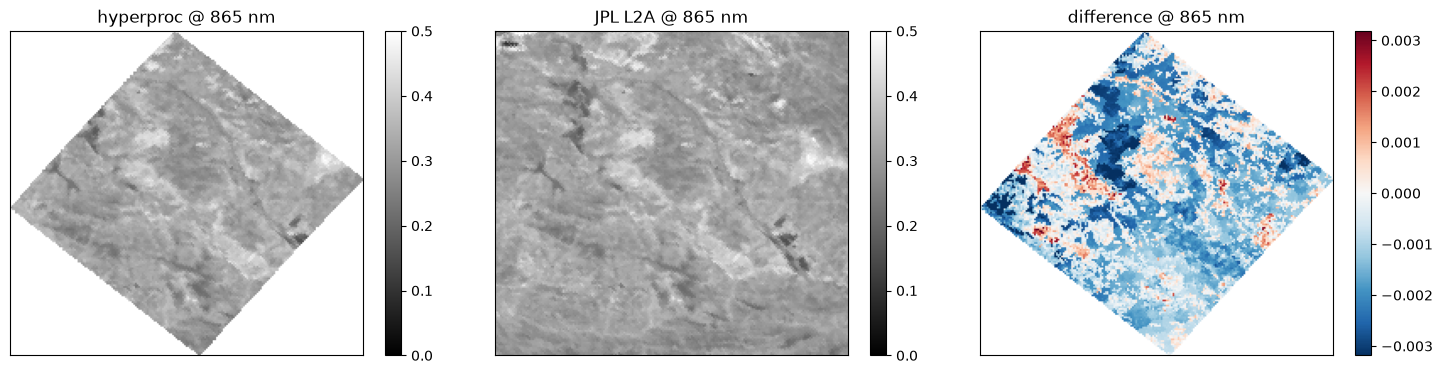

fig, ax = plt.subplots(1, 3, figsize=(15, 3.8))
for a, img, t, kw in ((ax[0], a_, "hyperproc", dict(cmap="gray", vmin=0, vmax=0.5)),
(ax[1], b_, "JPL L2A", dict(cmap="gray", vmin=0, vmax=0.5)),
(ax[2], a_-b_, "difference", dict(cmap="RdBu_r", vmin=-lim, vmax=lim))):
im = a.imshow(img, **kw); a.set_title(f"{t} @ {DIAG_NM:.0f} nm"); a.set_xticks([]); a.set_yticks([])
plt.colorbar(im, ax=a, fraction=0.046)
plt.tight_layout(); plt.show()
Saved output
3.2 BRDF normalisation, and the whole chain in one call¶
A satellite sees each pixel once, so it cannot measure its own angular response. The c-factor method borrows the shape from MODIS: for every 500 m cell MODIS publishes the three weights of a kernel model fitted over the preceding sixteen days, and the correction is the ratio of modelled reflectance at the target geometry to modelled reflectance at the observed one. Only the ratio is used, so the absolute level of the MODIS retrieval cancels and what transfers is the shape.
mcd43.fetch(...) (hyperproc.correct.mcd43)¶
Downloads and caches the MODIS parameters for a scene.
| Parameter | Default | What it does |
|---|---|---|
ds |
— | a dataset to take the footprint and date from, instead of passing them by hand |
bounds, date |
from ds |
(w, s, e, n) in degrees and YYYY-MM-DD, if you would rather be explicit |
out_dir |
the shared cache | where the downloaded file goes. A second call with the same footprint reuses it |
res |
None |
the grid step. None adapts to the image: never finer than MODIS's own 464 m, and coarser cells averaged when the image pixels are coarser, which is what PACE needs |
days |
8 |
how far either side of the scene date to look if that day has no granule |
quality |
True |
also fetch the per-band quality and snow flags |
project |
None |
your Earth Engine Cloud project, if your credentials do not carry one |
overwrite |
False |
re-download even when the cache has it |
hp.correct.nbar(ds, params=None, ...)¶
| Parameter | Default | What it does |
|---|---|---|
params |
downloaded | the MODIS parameters. Pass a fetched object to avoid a second download |
sza_ref |
45.0 |
target solar zenith. A number is the usual NBAR convention; "observed" keeps each pixel's own sun and removes only the view effect, which never extrapolates the model in sun angle; "mean" uses the scene mean |
vza_ref, raa_ref |
0.0, 0.0 |
target view geometry, nadir by default |
spectral |
"nearest" |
"nearest" gives each band the closest MODIS band's factor, as published, at the cost of a step where the assignment switches. "interp" is smooth but applies a shape no MODIS band measured |
fill |
"none" |
what to do where MODIS has no retrieval. "none" leaves the pixel untouched and flags it; "median" uses the scene median; "nearest" copies the nearest valid factor |
clip |
(0.25, 4.0) |
bounds on the correction factor, which stop a near-zero modelled reflectance producing a wild ratio |
qa_max |
3 |
keep MODIS cells up to this quality. 3 keeps every retrieval, which is right here because a magnitude inversion scales all three weights together and that factor cancels in the ratio; 1 keeps full inversions only, at the cost of holes |
mask_snow |
True |
drop cells MODIS flags as snow-covered |
keep_c |
True |
attach the seven factors as a c_factor variable for inspection |
cache_dir, project |
passed to the fetch when params is not given |
Adding "brdf" to process(stages=...) runs the whole chain in one call.
if RUN_AC and RUN_BRDF:
from hyperproc.correct import mcd43
params = mcd43.fetch(ds=l2a, out_dir=MODIS_DIR, verbose=True)
print(f"\nMODIS parameters {params.shape} at {abs(params.transform[0])*111320:.0f} m, "
f"date {params.date}, {params.coverage()*100:.0f} % of cells retrieved")
else:
params = None
Saved output
if RUN_AC and RUN_BRDF:
t0 = time.time()
acb = process(l1b_path, OUT / "03_ac_brdf", work_dir=WORK_DIR, stages=("ac", "brdf"),
workers=WORKERS, window=WINDOW, format=EXPORT_FORMAT, overviews=True,
brdf=dict(params=params, sza_ref=SZA_REF, vza_ref=VZA_REF,
spectral=SPECTRAL_MAP, fill="none"), verbose=True)
print(f"\n{(time.time()-t0)/60:.1f} min -> {Path(acb['reflectance']).name}")
print(" the retrieval was reused from the work directory; only the BRDF step and the export ran")
else:
acb = None; print("skipped")
Saved output
process: EMIT_L1B_RAD_001_20230422T195924_2311213_002 stages ('ac', 'brdf') engine sRTMnet work /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/02_ac/isofit
prepare_inputs: EMIT -> apply_oe sensor emit, fid emit20230422t195924; 120 x 120 x 285
radiance file already present with the right size; kept
ISOFIT inputs for EMIT_L1B_RAD_001_20230422T195924_2311213_002 (sensor code emit, fid emit20230422t195924)
120 lines x 120 samples x 285 bands, radiance x1 -> uW/cm2/nm/sr
rdn /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/02_ac/isofit/input/emit20230422t195924_rdn
loc /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/02_ac/isofit/input/emit20230422t195924_loc
obs /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/02_ac/isofit/input/emit20230422t195924_obs
valid pixels 100.0%; lat 34.548 lon -120.380 elev 56..418 m
sza 22.2..22.3 vza 11.0..11.2 raa 42..48 deg utc 19.992 h
reflectance product already present: /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/02_ac/isofit/output/emit20230422t195924_rfl (overwrite=True to redo)
BRDF c-factor on reflectance {'y': 120, 'x': 120, 'wavelength': 285}: sza 22.2 deg, vza 11.0-11.2 deg
Saved output
Saved output
/home/fujiang/miniconda3/envs/hsi/lib/python3.12/site-packages/rioxarray/_io.py:1148: NotGeoreferencedWarning: Dataset has no geotransform, gcps, or rpcs. The identity matrix will be returned.
warnings.warn(str(rio_warning.message), type(rio_warning.message)) # type: ignore
/home/fujiang/miniconda3/envs/hsi/lib/python3.12/site-packages/rioxarray/_io.py:1148: NotGeoreferencedWarning: Dataset has no geotransform, gcps, or rpcs. The identity matrix will be returned.
warnings.warn(str(rio_warning.message), type(rio_warning.message)) # type: ignore
/home/fujiang/miniconda3/envs/hsi/lib/python3.12/site-packages/rioxarray/_io.py:1148: NotGeoreferencedWarning: Dataset has no geotransform, gcps, or rpcs. The identity matrix will be returned.
warnings.warn(str(rio_warning.message), type(rio_warning.message)) # type: ignore
/home/fujiang/miniconda3/envs/hsi/lib/python3.12/site-packages/rioxarray/_io.py:1148: NotGeoreferencedWarning: Dataset has no geotransform, gcps, or rpcs. The identity matrix will be returned.
warnings.warn(str(rio_warning.message), type(rio_warning.message)) # type: ignore
Saved output
Saved output
quality: fill 49.3%, clear 50.7%
done in 0.1 min -> /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/03_ac_brdf/EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_brdf_win600-720_600-720.tif
0.1 min -> EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_brdf_win600-720_600-720.tif
the retrieval was reused from the work directory; only the BRDF step and the export ran
3.3 You already have *_ac.tif. Going on from there.¶
This is the common case: the retrieval ran days ago, the product is on disk, and you now want the BRDF version without spending another hour.
Two things stand in the way, and both are worth understanding rather than working around.
hp.open will not read a product back. The readers identify granules by their
provider's naming, and a file this package wrote is not one. Try it and you get a clear
refusal rather than a wrong answer. So a product is read with rasterio, and the
wavelengths come from the band descriptions in a GeoTIFF or from the wavelength field in
an ENVI header, which is one concrete reason to prefer ENVI for intermediate products.
The product carries no angles. process writes the reflectance cube, the retrieved
aerosol and water-vapour layers and the quality flags, but not the per-pixel geometry, and
the BRDF step needs sza, vza and raa. You have two ways to supply them:
- re-open the source granule, which carries the observation file and is on the same grid;
- or write them at correction time with
hp.export_geometry, as step 2 did, so they are beside the product.
The helper below does the first. It is short on purpose: the point is to show what a product is, not to hide it.
The two routes agree, but not bit for bit, and the reason is worth knowing. Passing
stages=("ac", "brdf") corrects on the sensor grid, where the retrieval ran, and
orthorectifies afterwards. Starting from a saved product corrects on the already
orthorectified grid, with angles that have themselves been through the look-up table. So
the c-factor is resampled in one route and the reflectance in the other. The median
difference comes out near zero, a thousandth of a percent of reflectance, with individual
pixels differing by around one percent along sharp edges, where resampling always disagrees
with itself. Either route is defensible; they are not interchangeable to the last digit.
def load_product(path, geometry_from=None, var="reflectance"):
'''Read a product this package wrote back into a dataset the corrections accept.
path a *_ac.tif or *_ac.img written by process() or to_raster()
geometry_from an opened granule on the same grid, to take sza/vza/raa from.
None returns the cube alone, which is enough for the spectral tools
but not for a BRDF correction.
'''
with rasterio.open(path) as src:
envi = src.tags(ns="ENVI")
if "wavelength" in envi: # ENVI states them as numbers
wl = np.array([float(v) for v in envi["wavelength"].strip("{}").split(",")])
else: # GeoTIFF: parse the band labels
wl = np.array([float(d.split()[0]) for d in src.descriptions])
cube = src.read().astype("float32")
tr, crs = src.transform, str(src.crs)
ny, nx = src.height, src.width
ds = xr.Dataset(
{var: (("y", "x", "wavelength"), np.moveaxis(cube, 0, -1))},
coords={"wavelength": wl,
"x": tr.c + (np.arange(nx) + 0.5) * tr.a,
"y": tr.f + (np.arange(ny) + 0.5) * tr.e},
attrs={"crs": crs, "transform": tuple(tr.to_gdal()), "sensor": "EMIT",
"stem": Path(path).stem, "units": "1"})
if geometry_from is not None:
g = same_ground(geometry_from, ds.x.values, ds.y.values) # by coordinate, not by index
for layer in ("sza", "saa", "vza", "vaa", "raa"):
if layer in g:
ds[layer] = (("y", "x"), g[layer].values)
return ds
# hp.open refuses a product, on purpose and with an explanation
if RUN_AC:
try:
hp.open(ac["reflectance"])
except ValueError as exc:
print("hp.open on a product:", str(exc)[:96], "...")
Saved output
if RUN_AC and RUN_BRDF:
saved = load_product(ac["reflectance"], geometry_from=l2a)
print(f"loaded {Path(ac['reflectance']).name}")
print(f" {dict(saved.sizes)} {saved.wavelength.values.min():.0f}-{saved.wavelength.values.max():.0f} nm")
print(f" geometry attached: {[v for v in ('sza','vza','raa') if v in saved]}")
from_saved = hp.correct.nbar(saved, params=params, sza_ref=SZA_REF, vza_ref=VZA_REF,
spectral=SPECTRAL_MAP, fill="none", verbose=False)
slim = from_saved.drop_vars([v for v in ("c_factor", "modis_band") if v in from_saved.variables])
p = hp.to_raster(slim, OUT / "03b_from_saved_ac" / f"{Path(ac['reflectance']).stem}_brdf{EXT}",
format=EXPORT_FORMAT, **({"overviews": True} if EXPORT_FORMAT == "GTiff" else {}))
print(f"\nwrote {p.name}")
# the two routes agree, but not to the last bit - see the note below
with rasterio.open(acb["reflectance"]) as src:
wl_c = np.array([float(d.split()[0]) for d in src.descriptions])
bi = int(np.argmin(np.abs(wl_c - DIAG_NM)))
chained = src.read(bi + 1)
xs_c, ys_c = raster_grid(acb["reflectance"])
two_step = same_ground(from_saved.reflectance.isel(
wavelength=int(np.argmin(np.abs(from_saved.wavelength.values - DIAG_NM)))), xs_c, ys_c).values
ok = np.isfinite(chained) & np.isfinite(two_step) & (chained > 0.01)
d = chained[ok] - two_step[ok]
print(f"\nagainst the one-call chain at {DIAG_NM:.0f} nm, {ok.sum():,} pixels:")
print(f" median difference {np.median(d):+.2e} p99 |d| {np.percentile(np.abs(d), 99):.2e}"
f" max |d| {np.abs(d).max():.2e}")
print(f" as a fraction of reflectance: median {np.median(np.abs(d)/chained[ok])*100:.3f} %"
f" max {(np.abs(d)/chained[ok]).max()*100:.2f} %")
Saved output
Saved output
Step 4 — scenario B, starting from L2A reflectance¶
If you already have surface reflectance, the atmospheric stage is done and you go straight
to the geometric one. hp.correct.nbar is the same function step 3.2 used through
process, called directly on any dataset that carries reflectance and per-pixel angles.
Its parameters are the table in step 3.2.
The result is lazy, so nothing is computed until it is written.
if RUN_BRDF:
t0 = time.time()
l2a_brdf = hp.correct.nbar(l2a_sub, params=params, sza_ref=SZA_REF, vza_ref=VZA_REF,
spectral=SPECTRAL_MAP, fill="none", cache_dir=MODIS_DIR)
print(f"built in {time.time()-t0:.1f} s (lazy); stem -> {l2a_brdf.attrs['stem']}")
for k, v in l2a_brdf.attrs.items():
if k.startswith("brdf_"):
print(f" {k:24s} {v}")
Saved output
Saved output
Saved output
built in 0.1 s (lazy); stem -> EMIT_L2A_RFL_001_20230422T195924_2311213_002_brdf
brdf_method c-factor (Roy et al. 2016) with MODIS MCD43A1 kernel weights
brdf_kernels ross_thick+li_sparse_r (b_r=1.0, h_b=2.0)
brdf_target sza=45 vza=0 raa=0
brdf_spectral nearest
brdf_fill none
brdf_sampling bilinear
brdf_clip 0.25-4.0
brdf_quality qa_max=3 mask_snow=True
brdf_parameters /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window/03_ac_brdf/mcd43/MCD43A1_2023-04-22_-121.0458_35.1333_311x288_240.00cpd.tif
brdf_parameter_date 2023-04-22
brdf_parameter_step_m 464
brdf_coverage 1.0000
brdf_unobserved 0.0000
if RUN_BRDF:
slim = l2a_brdf.drop_vars([v for v in ("c_factor", "modis_band") if v in l2a_brdf.variables])
t0 = time.time()
p = hp.to_raster(slim, OUT / "04_l2a_brdf" / f"{l2a_brdf.attrs['stem']}{EXT}",
format=EXPORT_FORMAT, **({"overviews": True} if EXPORT_FORMAT == "GTiff" else {}))
hp.bands_to_csv(slim, OUT / "04_l2a_brdf" / f"{l2a_brdf.attrs['stem']}_bands.csv")
print(f"wrote {p.name} ({p.stat().st_size/1e9:.2f} GB) in {(time.time()-t0)/60:.1f} min")
if RUN_BRDF:
b = int(np.argmin(np.abs(l2a_sub.wavelength.values - DIAG_NM)))
before = l2a_sub.reflectance.isel(wavelength=b).values
after = l2a_brdf.reflectance.isel(wavelength=b).values
ok = np.isfinite(before) & np.isfinite(after) & (before > 0.01)
print(f"median change at {DIAG_NM:.0f} nm: {np.median((after[ok]-before[ok])/before[ok])*100:+.2f} %")
lim = float(np.nanpercentile(np.abs(after - before), 98)) or 0.05

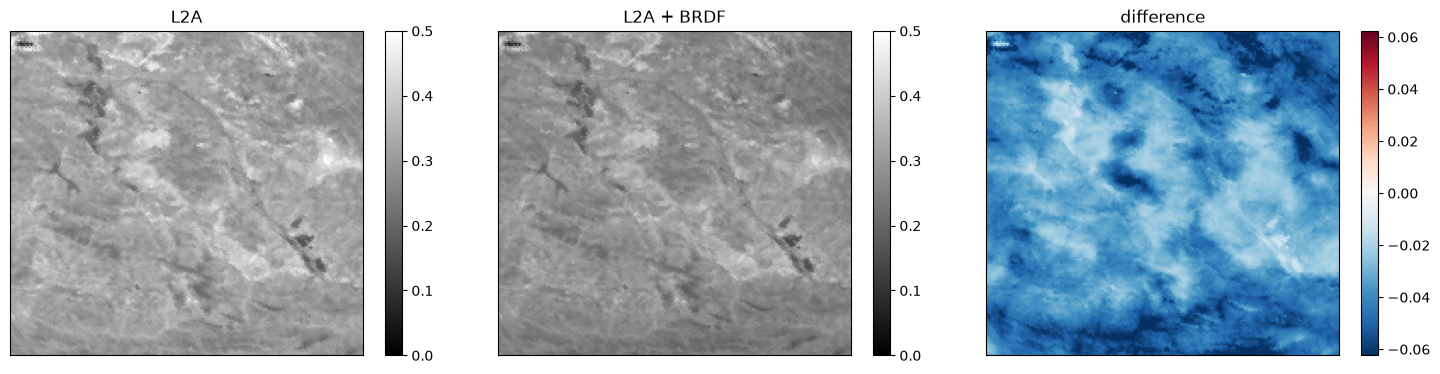

fig, ax = plt.subplots(1, 3, figsize=(15, 3.8))
for a, img, t, kw in ((ax[0], before, "L2A", dict(cmap="gray", vmin=0, vmax=0.5)),
(ax[1], after, "L2A + BRDF", dict(cmap="gray", vmin=0, vmax=0.5)),
(ax[2], after-before, "difference", dict(cmap="RdBu_r", vmin=-lim, vmax=lim))):
im = a.imshow(img, **kw); a.set_title(t); a.set_xticks([]); a.set_yticks([])
plt.colorbar(im, ax=a, fraction=0.046)
plt.tight_layout(); plt.show()
Can this scene check its own BRDF correction?¶
Two diagnostics, and it matters which one a scene can carry.
cfactor.view_profile(before, after, wavelength=865, var=None, step=2, stride=1, ndvi=None)¶
Bins the scene by view zenith and reports the mean reflectance per bin and the linear
slope, before and after. Its trap is that view zenith is also a position, so the
profile is partly a transect over changing land cover; ndvi=(0.2, 0.4) holds vegetation
density roughly constant, which helps but does not cure it. step is the bin width in
degrees and stride subsamples to keep the read cheap.
cfactor.model_agreement(ds, params, wavelength=865, ndvi=(0.2, 0.5), vza_range=None, step=20, stride=1, min_count=200)¶
The one that goes to the heart of the method. It bins pixels by relative azimuth, from the hotspot at 0 degrees to forward scattering at 180, and asks whether the observed reflectance rises and falls the way the borrowed MODIS parameters predict. It repeats the comparison with the azimuth turned by 180 degrees, which is a sharp check on the one input a reader can plausibly get backwards.
Expect inconclusive here. EMIT spans under two degrees of view zenith and sixty of
azimuth, which is not enough to separate the angular signal from the landscape. That is
the correct answer for a narrow-swath sensor, not a failure: on PACE, whose swath crosses
a continent, the same test returns a verdict.
With a small WINDOW there is even less to work with, and both diagnostics may refuse
outright rather than return a weak number. Refusing is the right behaviour: run the whole
scene if you want these to mean anything.
if RUN_BRDF:
from hyperproc.correct import cfactor
try:
prof = cfactor.view_profile(l2a_sub, l2a_brdf, wavelength=DIAG_NM, step=0.25, stride=3)
print(f"view-angle slope at {DIAG_NM:.0f} nm: {prof['slope_before']*1000:+.3f} -> "
f"{prof['slope_after']*1000:+.3f} e-3 per degree over {prof['vza_span']:.2f} deg")
except ValueError as exc:
print("view profile not available:", exc)
try:
agree = cfactor.model_agreement(l2a_sub, params.masked(), wavelength=DIAG_NM, stride=2)
print(f"\nmodel agreement: r={agree['r']:+.3f}, flipped={agree['r_flipped']:+.3f}, "
f"{agree['azimuth_span']:.0f} deg of azimuth in {len(agree['raa'])} bins")
print(" ->", agree["verdict"])
except ValueError as exc:
print("\nmodel agreement: not testable -", exc)
Saved output
Saved output
Step 5 — the quality layer¶
Every provider names its masks differently. Nine spellings mean cloud across the sensors
this package reads, shadow is shadow on one instrument and cloudshadow on another, and
valid and nodata mean opposite things. One layer with documented bits makes masking
the same call whatever the instrument.
hp.quality_flags(ds, var=None, derive=("fill", "terrain_shadow"), negative_fraction=0.1, slope_max=45.0, zhai=False, sources=True, verbose=False)¶
| Parameter | Default | What it does |
|---|---|---|
derive |
("fill", "terrain_shadow") |
flags to compute rather than read. "fill" marks pixels with no finite value in any usable band, "terrain_shadow" needs cos_i, "steep_terrain" needs slope, "negative_reflectance" reads the cube. The two defaults are the ones worth their cost on every sensor |
negative_fraction |
0.1 |
fraction of usable bands that must be below zero before negative_reflectance is set |
slope_max |
45.0 |
degrees above which steep_terrain is set |
zhai |
False |
also run a spectral cloud index where the bands exist. Off by default: a provider that ships a cloud mask should be trusted over it |
sources |
True |
read the provider's own layers. False derives only |
hp.quality_apply(ds, quality=None, drop=("fill", "cloud", "cloud_shadow", "cirrus"), var=None, keep=True, derive=("fill",))¶
Sets the cube to NaN wherever a dropped flag is set. drop is the list of flags to mask
on, and keep attaches the layer to the result.
hp.quality_decode(quality, *names) and hp.quality_table(quality)¶
decode returns a boolean for any combination of flags; table prints the bit meanings
with the share of pixels carrying each. process writes this layer beside every product
automatically.
Saved output
bit flag share meaning
--- -------------------- ------- ----------------------------------------------
0 fill 0.00 % no observation (off-swath, nodata, navigation failure)
1 saturated 0.00 % a band is at the detector rail
2 cloud 2.74 % opaque cloud
3 cloud_shadow 0.00 % shadow cast by cloud
4 cirrus 0.00 % thin or high cloud
5 snow_ice 0.00 % snow or ice
6 water 0.00 % inland or ocean water
7 haze 0.00 % aerosol haze flagged by the provider
8 sun_glint 0.00 % specular reflection geometry
9 terrain_shadow 0.00 % not illuminated by the direct beam (cos i <= 0)
10 steep_terrain 0.00 % slope beyond what a topographic correction holds
11 ac_failed 0.00 % atmospheric correction did not converge
12 brdf_filled 0.00 % BRDF c-factor not taken from MODIS at this pixel
13 negative_reflectance 0.00 % many good bands below zero after correction
clear (no flag) 97.26 %
clear = hp.quality_apply(l2a_sub, q, drop=("fill", "cloud", "cloud_shadow", "cirrus"))
kept = np.isfinite(clear.reflectance.isel(wavelength=100).values).mean()
print(f"after masking cloud, shadow, cirrus and fill: {kept*100:.1f} % of the grid still carries data")
hp.to_geotiff_2d(l2a_sub.assign(quality=q), OUT / "05_quality" / f"quality{EXT}", var="quality",
format=EXPORT_FORMAT, overview_resampling="nearest",
tags={"flag_bits": q.attrs["flag_bits"], "flag_meanings": q.attrs["flag_meanings"]})

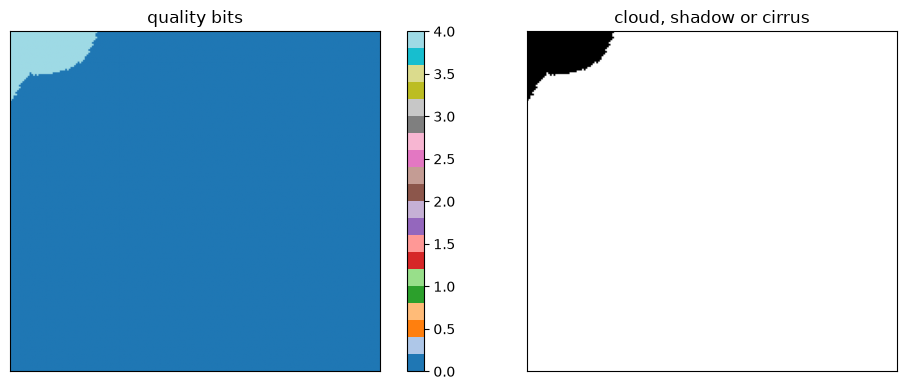

fig, ax = plt.subplots(1, 2, figsize=(11, 4))
im = ax[0].imshow(q.values, cmap="tab20"); ax[0].set_title("quality bits")
plt.colorbar(im, ax=ax[0], fraction=0.046)
ax[1].imshow(hp.quality_decode(q, "cloud", "cloud_shadow", "cirrus").values, cmap="gray_r")
ax[1].set_title("cloud, shadow or cirrus")
for a in ax: a.set_xticks([]); a.set_yticks([])
plt.tight_layout(); plt.show()
Step 6 — post-processing¶
Everything from here takes a corrected cube and either transforms it, a cube in and a cube
out, in hyperproc.spectral, or reduces it to a map, in hyperproc.features.
6.1 Two smoothers, with opposite contracts¶
hp.smooth_spectra(ds, var=None, window=5, order=2, method="savgol", good_only=True)¶
| Parameter | Default | What it does |
|---|---|---|
window |
5 |
filter length in bands. Must be odd and greater than order |
order |
2 |
polynomial order of the local fit |
method |
"savgol" |
Savitzky-Golay, which keeps peak shape, or "moving" for a running mean |
good_only |
True |
smooth only within runs of usable bands, so the filter never reaches across a water-vapour gap. With False the whole spectrum is one run |
It is cosmetic: it removes the band-to-band structure a per-pixel retrieval leaves, the way some providers do before publishing. It cannot invent a value and it preserves the NaN pattern exactly. The posterior uncertainty is dropped, because smoothing correlates neighbouring bands and makes it wrong.
hp.spline_gapfill(ds, var=None, df=60, threshold=0.018, despike=True, exclude=..., mask_after=..., min_points=20, keep_fill_flag=True)¶
The opposite, on purpose. Four steps per spectrum: remove upward spikes, blank the regions where the instrument's spectral shift leaves artefacts, fit a smoothing spline through what survives and evaluate it everywhere, then blank the deep water absorptions.
| Parameter | Default | What it does |
|---|---|---|
df |
60 |
degrees of freedom for the spline. Higher follows the spectrum more closely |
threshold |
0.018 |
how far a spike must rise above its neighbours, in reflectance |
despike |
True |
run the spike removal at all |
exclude |
13 windows | blanked before the fit, so the spline interpolates across them |
mask_after |
3 windows | blanked after the fit, so what it discards was interpolated anyway |
min_points |
20 |
a spectrum with fewer surviving bands is left as NaN |
keep_fill_flag |
True |
attach spline_filled, marking which reported bands are interpolation rather than measurement |
This reproduces a published R pipeline; the spline is a port of R's smooth.spline,
verified against R to about 1e-8. Because it invents values, the flag matters.
The figure below shows something the description does not. Between a window excluded
before the fit and one masked after it, the spline is unconstrained by any data, so it
can swing well away from the spectrum for a few bands before the mask hides it - near
1780 nm here, where it dives towards zero. That is the R pipeline's own behaviour,
reproduced faithfully, and a reason to trust spline_filled rather than the curve.
Fit narrow features on the unsmoothed cube. Both of these bias exactly the absorption depths and index ratios that section 6.2 and 6.3 measure.

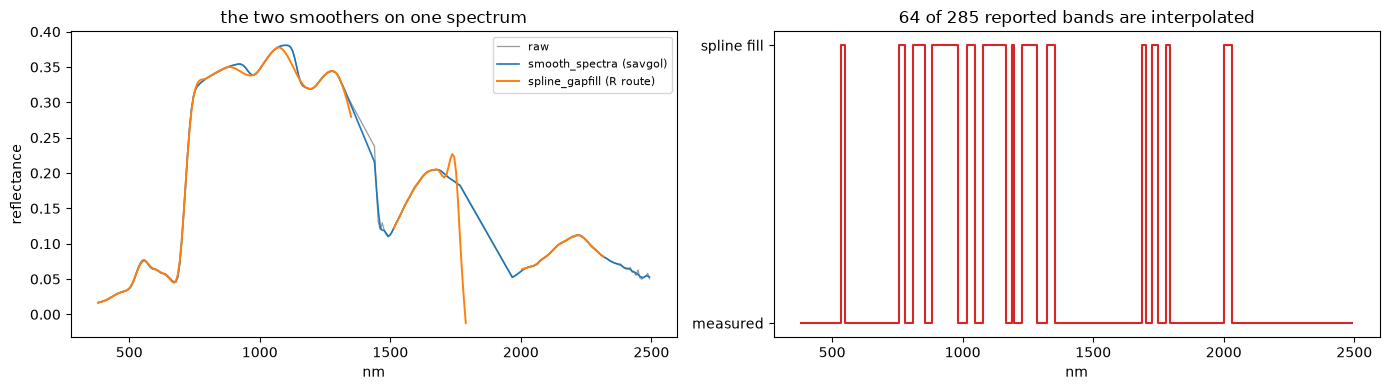

if RUN_POST:
patch = l2a_sub.isel(y=slice(_cy - 20, _cy + 20), x=slice(_cx - 20, _cx + 20))
sg = hp.smooth_spectra(patch, window=7, order=2, method="savgol", good_only=True)
sp = hp.spline_gapfill(patch, df=60, threshold=0.018, despike=True)
wl = patch.wavelength.values; good = patch.good_wavelength.values.astype(bool)
y, x = 20, 20
fig, ax = plt.subplots(1, 2, figsize=(14, 4))
ax[0].plot(wl[good], patch.reflectance.isel(y=y, x=x).values[good], color="0.6", lw=0.9, label="raw")
ax[0].plot(wl[good], sg.reflectance.isel(y=y, x=x).values[good], lw=1.2, label="smooth_spectra (savgol)")
ax[0].plot(wl, sp.reflectance.isel(y=y, x=x).values, lw=1.4, label="spline_gapfill (R route)")
ax[0].legend(fontsize=8); ax[0].set_xlabel("nm"); ax[0].set_ylabel("reflectance")
ax[0].set_title("the two smoothers on one spectrum")
filled = sp["spline_filled"].isel(y=y, x=x).values
ax[1].plot(wl, filled.astype(int), drawstyle="steps-mid", color="tab:red")
ax[1].set_yticks([0, 1]); ax[1].set_yticklabels(["measured", "spline fill"])
ax[1].set_xlabel("nm"); ax[1].set_title(f"{filled.sum()} of {wl.size} reported bands are interpolated")
plt.tight_layout(); plt.show()
6.2 Continuum removal, derivatives and absorption depth¶
hp.continuum_removal(ds, var=None, window=None, good_only=True)¶
Divides each spectrum by its upper convex hull, which separates the shape of an absorption
from the brightness of the surface under it. window=(2000, 2300) restricts the hull to a
feature, which is usually what you want; None fits the whole spectrum. The hull is fitted
inside each run of usable bands, never across one.
hp.spectral_derivative(ds, var=None, order=1, window=7, poly=2, good_only=True)¶
| Parameter | Default | What it does |
|---|---|---|
order |
1 |
1 for the first derivative, 2 for the second |
window, poly |
7, 2 |
the local polynomial fit. Differentiating raw reflectance amplifies noise, so the derivative comes from a fit rather than finite differences |
hp.band_depth(ds, feature, var=None, good_only=True)¶
feature is a name from the built-in list ("chlorophyll", "water_970", "water_1200",
"lignin_1730", "cellulose", "clay_2200") or a (lo, hi) window in nm. Returns
depth, position and area. Depth is measured against the feature's own shoulders,
which is what makes it comparable between scenes.

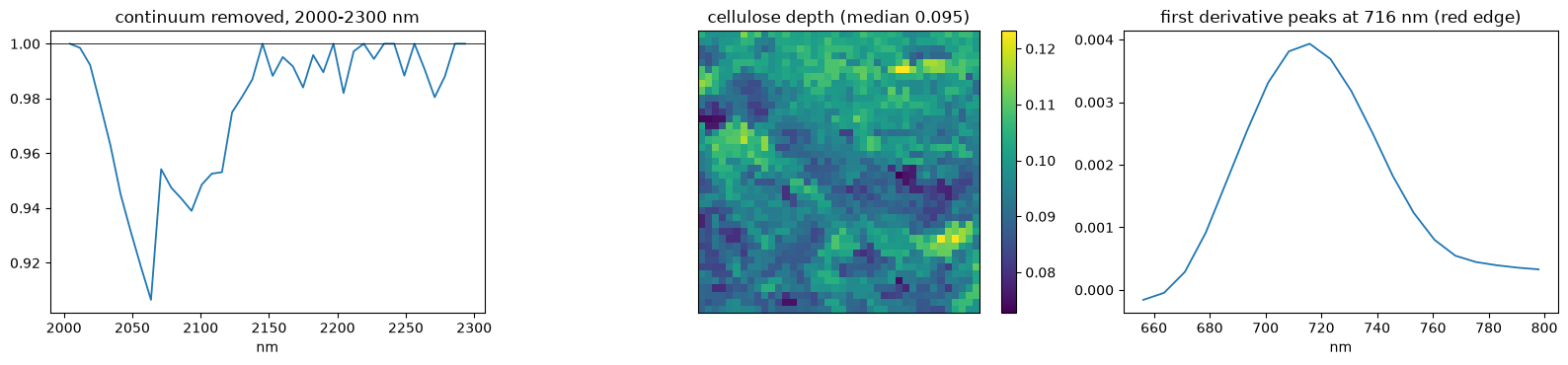

if RUN_POST:
cr = hp.continuum_removal(patch, window=(2000, 2300))
bd = hp.band_depth(patch, "cellulose")
d1 = hp.spectral_derivative(patch, order=1, window=7, poly=2)
wl = patch.wavelength.values
inside = (wl >= 2000) & (wl <= 2300)
fig, ax = plt.subplots(1, 3, figsize=(16, 3.8))
ax[0].plot(wl[inside], cr.reflectance.isel(y=20, x=20).values[inside], lw=1.3)
ax[0].axhline(1, color="k", lw=0.6); ax[0].set_title("continuum removed, 2000-2300 nm"); ax[0].set_xlabel("nm")
im = ax[1].imshow(bd["depth"].values, cmap="viridis"); plt.colorbar(im, ax=ax[1], fraction=0.046)
ax[1].set_title(f"cellulose depth (median {np.nanmedian(bd['depth'].values):.3f})")
ax[1].set_xticks([]); ax[1].set_yticks([])
prof = np.nanmedian(d1.reflectance.values.reshape(-1, wl.size), axis=0)
vis = (wl > 650) & (wl < 800)
ax[2].plot(wl[vis], prof[vis], lw=1.3)
ax[2].set_title(f"first derivative peaks at {wl[vis][np.nanargmax(prof[vis])]:.0f} nm (red edge)")
ax[2].set_xlabel("nm")
plt.tight_layout(); plt.show()
6.3 Spectral indices¶
hp.spectral_index(ds, formula, var=None, tolerance=20.0, good_only=True, name=None)¶
| Parameter | Default | What it does |
|---|---|---|
formula |
— | a name from the registry ("NDVI"), or an expression in which R<wavelength> means the band nearest that wavelength in nm, for example "(R800 - R670) / (R800 + R670)" |
tolerance |
20.0 |
how far, in nm, the nearest band may sit from the one you asked for before the call fails. The error message names the sensor's coverage, which is the whole story on a VNIR-only instrument |
good_only |
True |
ignore bands flagged unusable |
name |
the index name | what to call the result |
Indices are addressed by wavelength, never by band number, which is why one call runs
unchanged on EMIT at 285 bands, PACE at 122 and AVIRIS at 425. Arithmetic and the functions
log, log10, sqrt, exp and abs are allowed and nothing else, so a formula pasted
from a paper is safe.
hp.describe_indices(ds=None, tolerance=20.0)¶
The twelve built-in indices with their formulas and citations, and, when given a dataset, which of them that sensor can actually compute.
Saved output
index status formula reference
------- ---------- ---------------------------------------------------------- ------------------------
NDVI available (R860 - R660) / (R860 + R660) Rouse et al. 1974
EVI available 2.5 * (R860 - R660) / (R860 + 6*R660 - 7.5*R480 + 1) Huete et al. 2002
NDWI available (R860 - R1240) / (R860 + R1240) Gao 1996
NDII available (R820 - R1650) / (R820 + R1650) Hunt and Rock 1989
PRI available (R531 - R570) / (R531 + R570) Gamon et al. 1992
NDNI available (log(1/R1510) - log(1/R1680)) / (log(1/R1510) + log(1/R1680)) Serrano et al. 2002
CAI available 0.5 * (R2020 + R2220) - R2100 Nagler et al. 2003
MCARI available ((R700 - R670) - 0.2 * (R700 - R550)) * (R700 / R670) Daughtry et al. 2000
ARI1 available 1/R550 - 1/R700 Gitelson et al. 2001
CRI1 available 1/R510 - 1/R550 Gitelson et al. 2002
PSRI available (R680 - R500) / R750 Merzlyak et al. 1999
NDSI available (R550 - R1640) / (R550 + R1640) Hall et al. 1995
if RUN_POST:

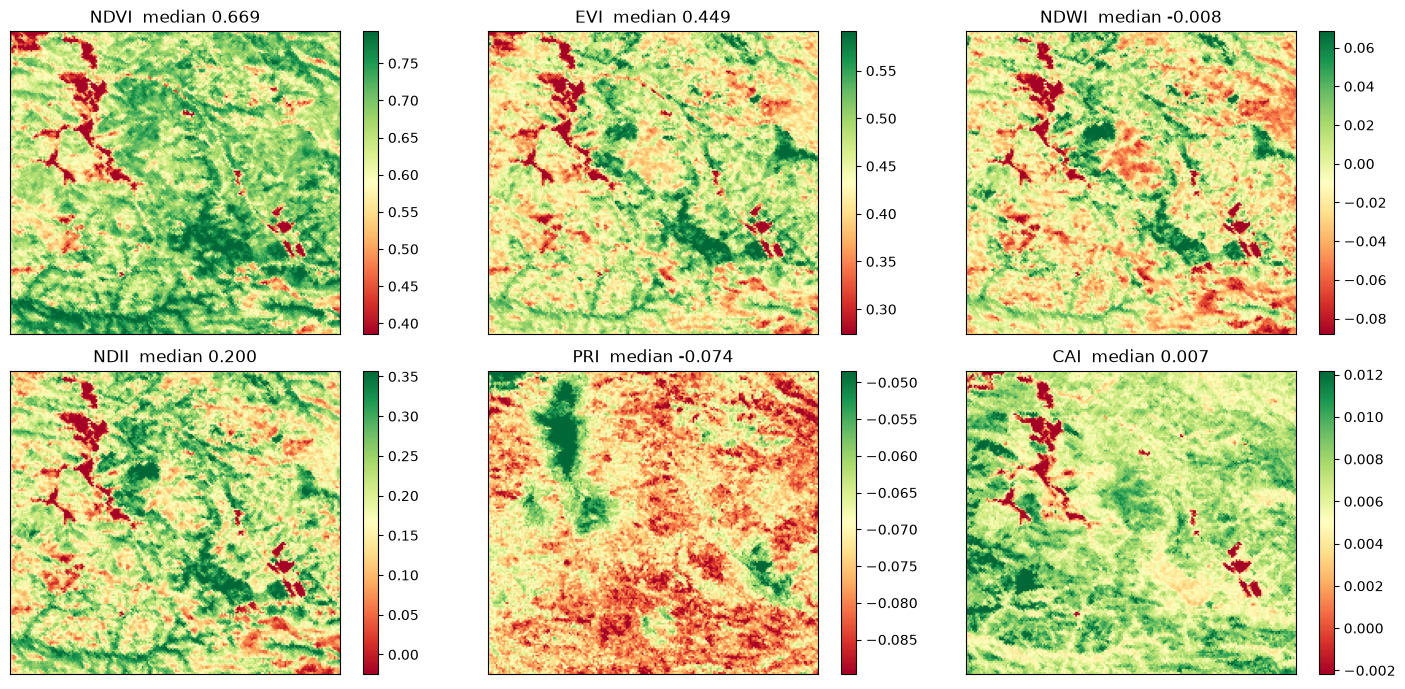

names = ["NDVI", "EVI", "NDWI", "NDII", "PRI", "CAI"]
fig, ax = plt.subplots(2, 3, figsize=(15, 7))
for a, n in zip(ax.ravel(), names):
v = hp.spectral_index(l2a_sub, n).values
im = a.imshow(v, cmap="RdYlGn", vmin=np.nanpercentile(v, 2), vmax=np.nanpercentile(v, 98))
a.set_title(f"{n} median {np.nanmedian(v):.3f}"); a.set_xticks([]); a.set_yticks([])
plt.colorbar(im, ax=a, fraction=0.046)
plt.tight_layout(); plt.show()
custom = hp.spectral_index(l2a_sub, "(R860 - R1240) / (R860 + R1240)", name="my_ndwi")
print("your own formula:", custom.attrs["formula"])
print("bands it used :", custom.attrs["bands_used"])
Saved output
6.4 Resampling to another instrument¶
hp.resample(data, ...)¶
Resampling is one matrix, so a whole scene moves in seconds. Name the target one of four ways:
| Parameter | What it means |
|---|---|
step, fwhm, wl_range |
a regular grid: step=10, fwhm=15 is 10 nm spacing with 15 nm bands. Leaving fwhm out makes it equal to step |
wavelengths, fwhm |
explicit band centres and widths |
like=other_ds |
match another dataset's bands, using Gaussians of its stated FWHM |
sensor="SENTINEL2A" |
a real instrument, using the agency's measured response, downloaded and cached |
Spacing and bandwidth are different things. Every sensor here is oversampled: EMIT
samples every 7.44 nm with 8.4 nm bands, PACE every 5 nm with bands up to 80 nm. So step
and fwhm are separate arguments.
| Parameter | Default | What it does |
|---|---|---|
method |
None |
None lets a sensor= target use its measured response and otherwise uses "gaussian". "box" reproduces Spectral Python's resampler; "linear", "cubic", "nearest" interpolate at the centres and ignore bandwidth |
min_coverage |
0.5 |
a target band with less than this fraction of its response inside the source's range comes back NaN instead of being renormalised over whatever bands happened to be there |
allow_sharpening |
False |
asking for bands narrower than the source has is refused, because resampling cannot raise spectral resolution |
good_only |
True |
exclude bands flagged unusable from the convolution and from the coverage |
return_coverage |
False |
also return the per-band coverage fraction |
Watch Sentinel-2's band 10 and Landsat's cirrus band disappear below: 1375 nm sits in a water-vapour gap EMIT does not measure, so the honest answer is NaN.
srf.available() and srf.fetch(sensor, cache=None, overwrite=False, verbose=True)¶
What response functions are known and which are already cached. Sentinel-2 comes from ESA, Landsat 4 through 9 from the USGS; PlanetScope is listed as nominal, meaning published band edges rather than a measured curve, and the entry says so rather than letting you assume.
Saved output
sensor kind bands cached source
-------------- --------- ----- ------- ----------------------------------------
SENTINEL2A measured 13 yes ESA
SENTINEL2B measured - no ESA
LANDSAT4 measured - no USGS
LANDSAT5 measured - no USGS
LANDSAT7 measured - no USGS
LANDSAT8 measured 9 yes USGS
LANDSAT9 measured - no USGS
PLANETSCOPE4 nominal 4 n/a Planet (band edges only)
PLANETSCOPE8 nominal 8 n/a Planet (band edges only)

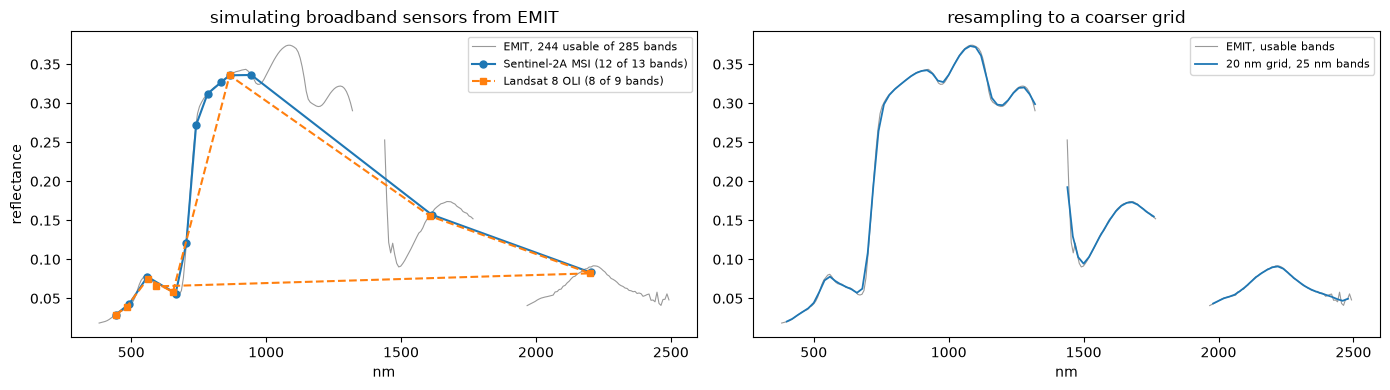

if RUN_POST:
_h = min(50, _cy, _cx)
patch2 = l2a_sub.isel(y=slice(_cy - _h, _cy + _h), x=slice(_cx - _h, _cx + _h)).compute()
# The bands EMIT flags unusable carry the provider's -0.01 fill, not a reflectance.
# Blank them for the plot, exactly as good_only=True blanks them for the convolution.
raw = patch2.reflectance.values[_h // 2, _h // 2].copy()
raw[~patch2.good_wavelength.values.astype(bool)] = np.nan
wl2 = patch2.wavelength.values
fig, ax = plt.subplots(1, 2, figsize=(14, 4))
ax[0].plot(wl2, raw, color="0.6", lw=0.8, label="EMIT, 244 usable of 285 bands")
for sensor, style in (("SENTINEL2A", "o-"), ("LANDSAT8", "s--")):
out = hp.resample(patch2, sensor=sensor)
got = srf.fetch(sensor, verbose=False)
keep = np.isfinite(out.reflectance.values[_h // 2, _h // 2])
ax[0].plot(out.wavelength.values[keep], out.reflectance.values[_h // 2, _h // 2][keep], style,
ms=5, label=f"{got['label']} ({keep.sum()} of {len(got['bands'])} bands)")
print(f"{got['label']:18s} dropped for low coverage: "
f"{[b for b, k in zip(got['bands'], keep) if not k]}")
ax[0].legend(fontsize=8); ax[0].set_xlabel("nm"); ax[0].set_ylabel("reflectance")
ax[0].set_title("simulating broadband sensors from EMIT")
grid = hp.resample(patch2, step=20, fwhm=25)
ax[1].plot(wl2, raw, color="0.6", lw=0.8, label="EMIT, usable bands")
ax[1].plot(grid.wavelength.values, grid.reflectance.values[_h // 2, _h // 2], lw=1.3, label="20 nm grid, 25 nm bands")
ax[1].legend(fontsize=8); ax[1].set_xlabel("nm"); ax[1].set_title("resampling to a coarser grid")
plt.tight_layout(); plt.show()
try:
hp.resample(patch2, step=2, fwhm=2)
except ValueError as exc:
print("\nasking for 2 nm bands from an 8.4 nm instrument is refused:")
print(" ", str(exc)[:150], "...")
Saved output
Step 7 — coregistration¶
Two products of the same ground rarely land on the same pixel, and cropping both to a common extent aligns the corners while leaving the content offset.
hp.estimate_shift(moving, reference, wavelength=860, tiles=4, min_snr=3.0, max_scatter=1.0, var=None, ref_var=None, verbose=False)¶
| Parameter | Default | What it does |
|---|---|---|
wavelength |
860.0 |
the band matched on. The near infrared has sharp land and water edges on almost every surface |
tiles |
4 |
the scene is matched in a tiles x tiles grid as well as whole, to see whether one shift describes it. 0 skips the check |
min_snr |
3.0 |
below this the correlation peak is not trusted |
max_scatter |
1.0 |
tiles must agree to within this many pixels for the result to count as consistent |
It returns the shift in pixels and in metres, the peak strength, the tile scatter, a
consistent verdict and a readable report. A correlation peak always exists, even
between unrelated images, which is why those last two matter.
hp.coregister(moving, reference, resample=False, force=False, ...)¶
Measures and then corrects. By default it moves the georeferencing, which is exact and
free; resample=True puts the cube on the reference's own grid, which is what
pixel-to-pixel work needs. It refuses an inconsistent match unless you pass force.
Below it is used as a check rather than a correction: our own retrieval against JPL's L2A. They share a grid and carry genuinely different radiometry, so a correct matcher reports no shift with a strong peak. That is also the demonstration that the method is insensitive to brightness differences between products, which is what lets it work across sensors.
if RUN_AC:
with rasterio.open(ac["reflectance"]) as src:
wl_p = np.array([float(d.split()[0]) for d in src.descriptions])
bi = int(np.argmin(np.abs(wl_p - DIAG_NM)))
n = min(500, src.width, src.height) # a centred window, whatever size the product is
win = rasterio.windows.Window((src.width - n) // 2, (src.height - n) // 2, n, n)
arr = src.read(bi + 1, window=win); tr = src.window_transform(win)
xs_a = tr.c + (np.arange(n) + 0.5) * tr.a
ys_a = tr.f + (np.arange(n) + 0.5) * tr.e
ours_ds = xr.Dataset({"reflectance": (("y", "x", "wavelength"), arr[:, :, None].astype("float32"))},
coords={"wavelength": [wl_p[bi]], "x": xs_a, "y": ys_a},
attrs={"crs": "EPSG:4326", "transform": tuple(tr.to_gdal()), "sensor": "EMIT-AC"})
ref = same_ground(l2a, xs_a, ys_a) # the same ground out of JPL's product
fit = hp.estimate_shift(ours_ds, ref, wavelength=float(wl_p[bi]),
tiles=4 if n >= 200 else 2, verbose=False)
print(f"matching a {n} x {n} window of our AC product against JPL's L2A\n")
print(fit["report"])
Saved output
What this notebook exercised¶
Everything below was called on real data above. If a future change breaks one of them, this notebook is where it shows.
exercised = {
"reading": ["hp.open", "hp.sniff", "hp.summary", "hp.list_readers", "hp.describe", "hp.main_var"],
"export": ["hp.to_geotiff", "hp.to_envi", "hp.to_raster", "hp.to_geotiff_2d",
"hp.bands_to_csv", "hp.export_geometry"],
"atmospheric": ["hp.atmos.check", "hp.atmos.process"],
"BRDF": ["mcd43.fetch", "hp.correct.nbar", "cfactor.view_profile", "cfactor.model_agreement"],
"quality": ["hp.quality_flags", "hp.quality_table", "hp.quality_apply", "hp.quality_decode"],
"spectral": ["hp.smooth_spectra", "hp.spline_gapfill", "hp.continuum_removal",
"hp.spectral_derivative", "hp.resample", "srf.available", "srf.fetch"],
"features": ["hp.spectral_index", "hp.describe_indices", "hp.band_depth"],
"coregistration": ["hp.estimate_shift"],
}
print(f"{sum(len(v) for v in exercised.values())} entry points across {len(exercised)} areas:\n")
for area, fns in exercised.items():
print(f" {area:16s} {', '.join(fns)}")
print(f"\nproducts written under {OUT}:")
for p in sorted(OUT.rglob("*")):
if p.is_file() and p.suffix in (".tif", ".img", ".hdr", ".csv", ".json"):
print(f" {p.relative_to(OUT)} ({p.stat().st_size/1e6:.1f} MB)")
Saved output
33 entry points across 8 areas:
reading hp.open, hp.sniff, hp.summary, hp.list_readers, hp.describe, hp.main_var
export hp.to_geotiff, hp.to_envi, hp.to_raster, hp.to_geotiff_2d, hp.bands_to_csv, hp.export_geometry
atmospheric hp.atmos.check, hp.atmos.process
BRDF mcd43.fetch, hp.correct.nbar, cfactor.view_profile, cfactor.model_agreement
quality hp.quality_flags, hp.quality_table, hp.quality_apply, hp.quality_decode
spectral hp.smooth_spectra, hp.spline_gapfill, hp.continuum_removal, hp.spectral_derivative, hp.resample, srf.available, srf.fetch
features hp.spectral_index, hp.describe_indices, hp.band_depth
coregistration hp.estimate_shift
products written under /data/fujiang/Hyperspectral_data_processing/tests/output/EMIT_window:
01_read/demo.hdr (0.0 MB)
01_read/demo.img (4.1 MB)
01_read/demo.tif (2.4 MB)
01_read/demo_bands.csv (0.0 MB)
01_read/demo_elev.tif (0.0 MB)
01_read/geometry/EMIT_L2A_RFL_001_20230422T195924_2311213_002_raa.tif (0.0 MB)
01_read/geometry/EMIT_L2A_RFL_001_20230422T195924_2311213_002_sza.tif (0.0 MB)
01_read/geometry/EMIT_L2A_RFL_001_20230422T195924_2311213_002_vza.tif (0.0 MB)
02_ac/EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_win600-720_600-720.tif (13.7 MB)
02_ac/EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_win600-720_600-720_aot550.tif (0.1 MB)
02_ac/EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_win600-720_600-720_bands.csv (0.0 MB)
02_ac/EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_win600-720_600-720_h2o.tif (0.1 MB)
02_ac/EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_win600-720_600-720_provenance.json (0.0 MB)
02_ac/EMIT_L1B_RAD_001_20230422T195924_2311213_002_ac_win600-720_600-720_quality.tif (0.0 MB)
02_ac/isofit/config/emit20230422t195924_h2o.json (0.0 MB)
02_ac/isofit/config/emit20230422t195924_h2o_tpl.json (0.0 MB)
02_ac/isofit/config/emit20230422t195924_isofit.json (0.0 MB)
02_ac/isofit/config/emit20230422t195924_modtran_tpl.json (0.0 MB)
02_ac/isofit/hyperproc_ac.json (0.0 MB)
02_ac/isofit/input/emit20230422t195924_loc.hdr (0.0 MB)
02_ac/isofit/input/emit20230422t195924_obs.hdr (0.0 MB)
02_ac/isofit/input/emit20230422t195924_rdn.hdr (0.0 MB)
02_ac/isofit/input/emit20230422t195924_subs_loc.hdr (0.0 MB)
02_ac/isofit/input/emit20230422t195924_subs_obs.hdr (0.0 MB)
02_ac/isofit/input/emit20230422t195924_subs_rdn.hdr (0.0 MB)
02_ac/isofit/input/inputs.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/AOT550/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/H2OSTR/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/coszen/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/dif-dif/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/dif-dir/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/dir-dif/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/dir-dir/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/fwhm/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/rhoatm/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/solar_irr/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/solzen/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/sphalb/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/surface_elevation_km/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/thermal_downwelling/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/thermal_upwelling/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/transm_down_dif/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/transm_down_dir/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/transm_up_dif/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/transm_up_dir/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/wl/zarr.json (0.0 MB)
02_ac/isofit/lut_full/6S.lut.zarr/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/AOT550/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/H2OSTR/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/coszen/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/dif-dif/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/dif-dir/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/dir-dif/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/dir-dir/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/fwhm/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/rhoatm/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/solar_irr/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/solzen/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/sphalb/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/surface_elevation_km/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/thermal_downwelling/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/thermal_upwelling/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut.zarr/transm_down_dif/zarr.json (0.0 MB)
02_ac/isofit/lut_full/lut
… Display shortened. Full text is retained in the notebook download.
Notes for the next sensor¶
The same notebook shape works for PRISMA, EnMAP, DESIS, PACE and Tanager. Three things change:
- The reader call and the file glob, and for PRISMA whether you start from the L1 file or from ASI's L2D.
- What the BRDF step can validate. PACE is the one sensor whose swath spans enough
azimuth for
model_agreementto return a verdict; on the narrow-swath instruments it reportsinconclusive, which is correct rather than disappointing. - The MODIS grid. It adapts to the image: the 30 m sensors get MODIS's native 464 m, while PACE's 1.2 km pixels get 3 by 3 cells averaged, which also turns a 2 GB request into 72 MB.
The topographic stage stays out of all of them. It belongs to the airborne notebooks, where AVIRIS and NEON flightlines give it the pixel size and the angular spread it needs.
